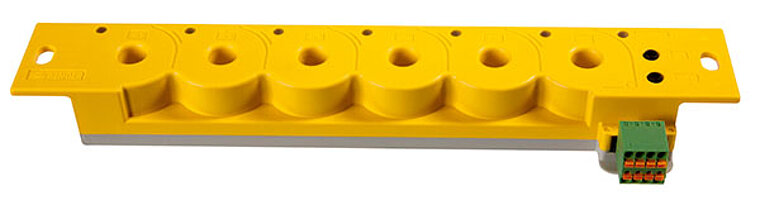

ISOSCAN® EDS150
- Automatic insulation fault location
- Application main circuits
- 6 measuring channels
- Integrated measuring current transformers
- Universal system concept
The insulation fault locator EDS150 in conjunction with the ISOMETER®, are designed for insulation fault location in unearthed power supplies (IT systems). The locating current pulse generated by the ISOMETER® are detected using the integrated measuring current transformers and evaluated by the insulation fault locators. The integration of six measuring current transformers in an EDS150 permits all current-carrying conductors of an outgoing line to be routed through. The response time for an alarm message inclusively indication on the respective display device is max. 8 s (e.g. MK2430).
A total of 88 EDS150 devices can be connected via an RS-485 interface (BMS protocol). Hence, up to 528 circuits can be monitored. Activities on the BMS bus are indicated by an alarm LED.
- Automatic insulation fault location
- Application main circuits
- 6 measuring channels
- Integrated measuring current transformers
- Universal system concept
The insulation fault locator EDS150 in conjunction with the ISOMETER®, are designed for insulation fault location in unearthed power supplies (IT systems). The locating current pulse generated by the ISOMETER® are detected using the integrated measuring current transformers and evaluated by the insulation fault locators. The integration of six measuring current transformers in an EDS150 permits all current-carrying conductors of an outgoing line to be routed through. The response time for an alarm message inclusively indication on the respective display device is max. 8 s (e.g. MK2430).
A total of 88 EDS150 devices can be connected via an RS-485 interface (BMS protocol). Hence, up to 528 circuits can be monitored. Activities on the BMS bus are indicated by an alarm LED.
Features
- Insulation fault location in AC, AC/DC and DC IT systems
- 6 measuring channels with measuring current transformer per EDS150
- Up to 528 measuring channels can be combined by the BMS bus in the IT system being monitored: 88 x 6 measuring channels
- Response sensitivity EDS150: 5 mA
- A response time of up to 8 s in the AC system acc. to IEC 61557-9
- RS-485 interface with BMS protocol
- BMS address range 3…90
- Cyclical self test
Applications
- Insulation fault location in AC, AC/DC and DC IT systems
- DC main circuits in industrial plants, power stations and ships
ISOSCAN® EDS150 Variant(s)
| Type | Supply voltage* | Art. No. |
|---|---|---|
| EDS150 | AC 17…24 V, 50…60Hz/DC 14…28 V | B91080103 |
* Absolute values of the voltage range
Optional Accessories for ISOSCAN® EDS150
| Type | Supply voltage | Output voltage | Art. No. | Note |
|---|---|---|---|---|
| AN410 | AC 90…264 V, 47…63Hz* DC 120…370 V* | DC 24 V, 420 mA | B924209 | Supplies up to six EDS151 |
| AN450 | AC 230 V, 50…60 Hz | AC 20 V, 500 mA | B924201 | Supplies up to six EDS151 |
| AN450-133 | AC 127 V, 50…60 Hz | AC 20 V, 500 mA | B924203 | Supplies up to six EDS151 |
* Absolute values of the voltage range
