Energy meter
Along with numerous measuring values, all devices of the PEM series can measure energy and power values. If, however, a measuring point is used for billing purposes, special requirements are to be met (subject to obligatory calibration). For this purpose, energy meters with MID (Measurement Instrument Directive) conformity mark are suitable. Bender provides a selection of energy meters.
Along with numerous measuring values, all devices of the PEM series can measure energy and power values. If, however, a measuring point is used for billing purposes, special requirements are to be met (subject to obligatory calibration). For this purpose, energy meters with MID (Measurement Instrument Directive) conformity mark are suitable. Bender provides a selection of energy meters.
Features
- Energy meter with Modbus RTU interface
- MID approved
- 7-digit display
- Automatic recognition of bus transmission rate and parity
- Lead seal possible with cap as accessory
- Resettable, partial reading
- In addition to active energy metering, measured data such as current, voltage, power and cos (phi) is also available.
- DIN rail mounting
Applications
- Registration of relevant energy management data
- Suitable for billing purposes

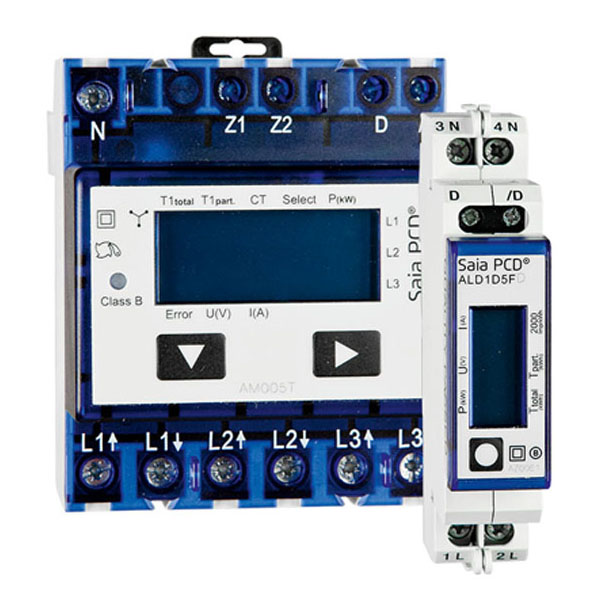

Energy meter Variant(s)
| Type | Description | Art. No. |
|---|---|---|
| ALD1 | Energy meter 1Ph/32 A MID Modbus RTU | B93101005 |
| ALE3 | Energy meter 3Ph/65 A MID Modbus RTU | B93101006 |
| AWD3 | Energy meter 3Ph/6 A MID Modbus RTU | B93101007 |
| PCD7 | S0 pulse counter (four-fold) with Modbus RTU | B93101008 |
Optional Accessories for Energy meter
| Description | Art. No. |
|---|---|
| Sealable cover for ALD1 (two per counter) | B93101009 |
| Sealable cover for ALE3/AWD3 (four per counter) | B93101010 |
Downloads for Energy meter
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Contadores de energía | Datasheets | 353.7 KB | ES | 2019/05/1313.05.2019 | D00230 |
| Energiezähler | Datasheets | 429.7 KB | DE | 2021/09/1414.09.2021 | D00230 |
| Energy meter | Datasheets | 427.4 KB | EN | 2021/09/1414.09.2021 | D00230 |
